K1LZ Tower 2 Antennas

Here are some photo's of Krassy's Tower 2 and Antennas:

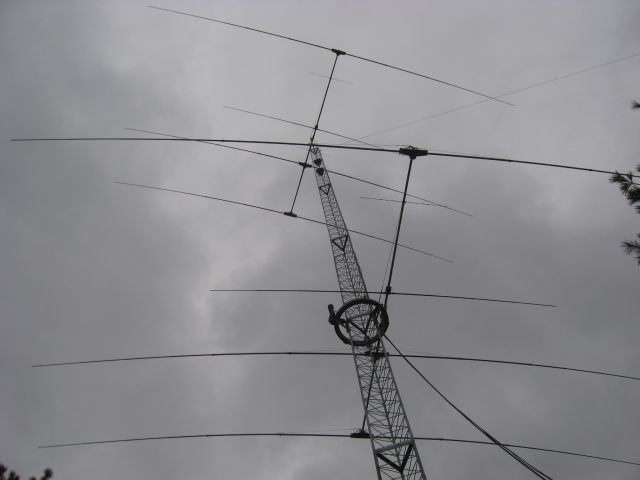

Tower 2 - Close Up of Monster SteppIR Beam

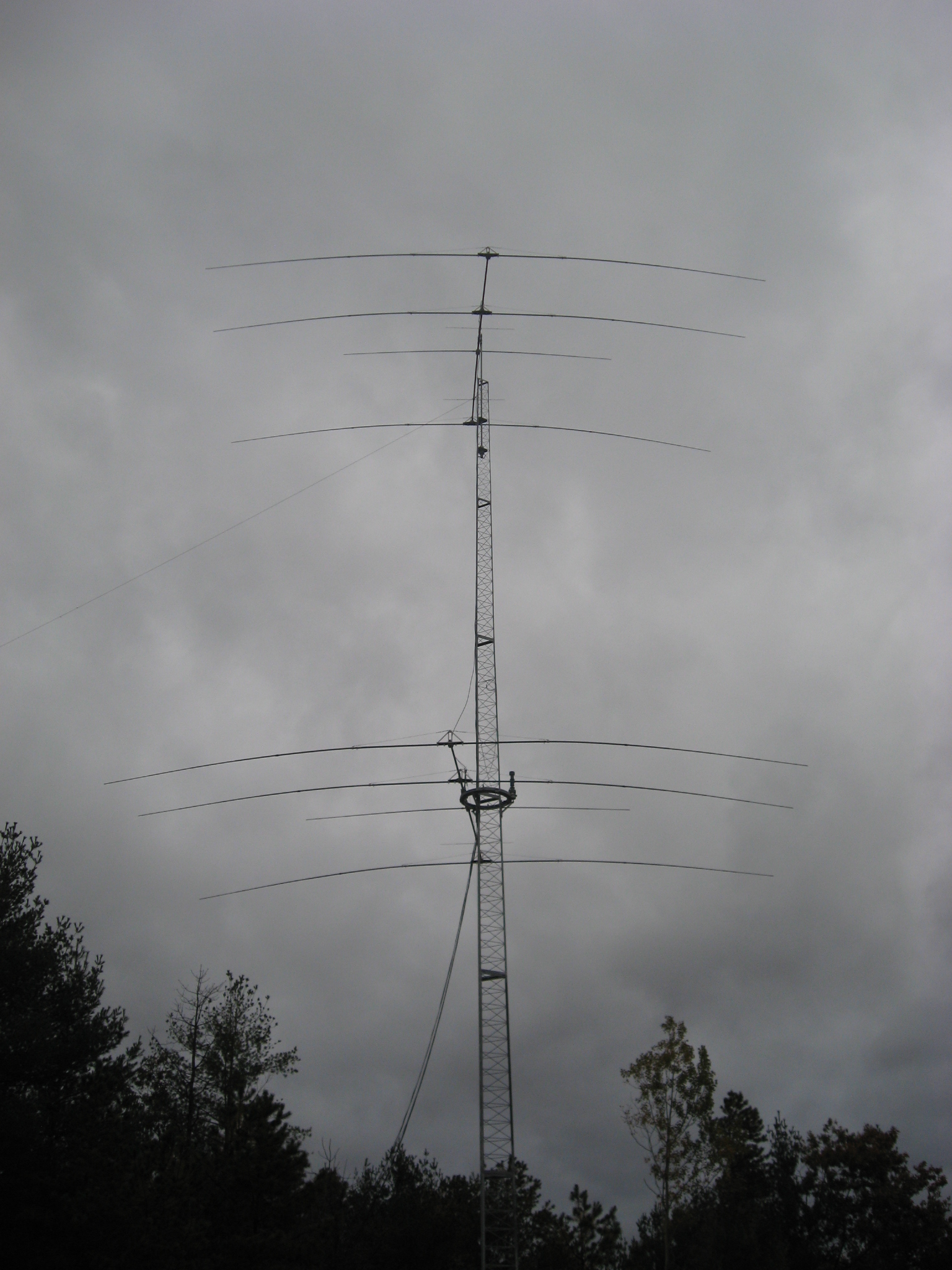

Tower 2 - Qty 2 Monster SteppIR Beams

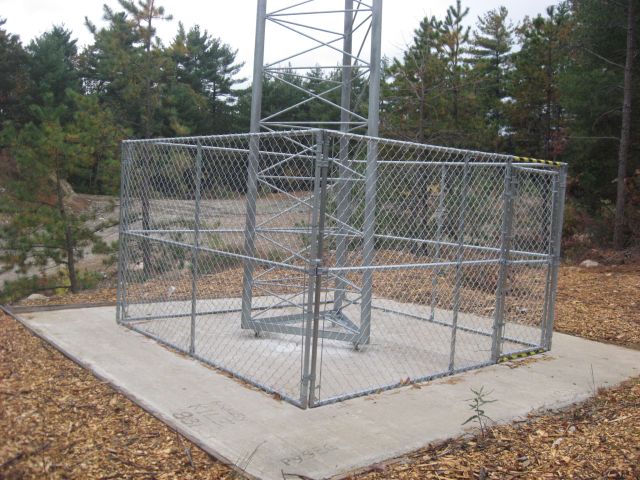

Tower # 2 - Protected Base Section

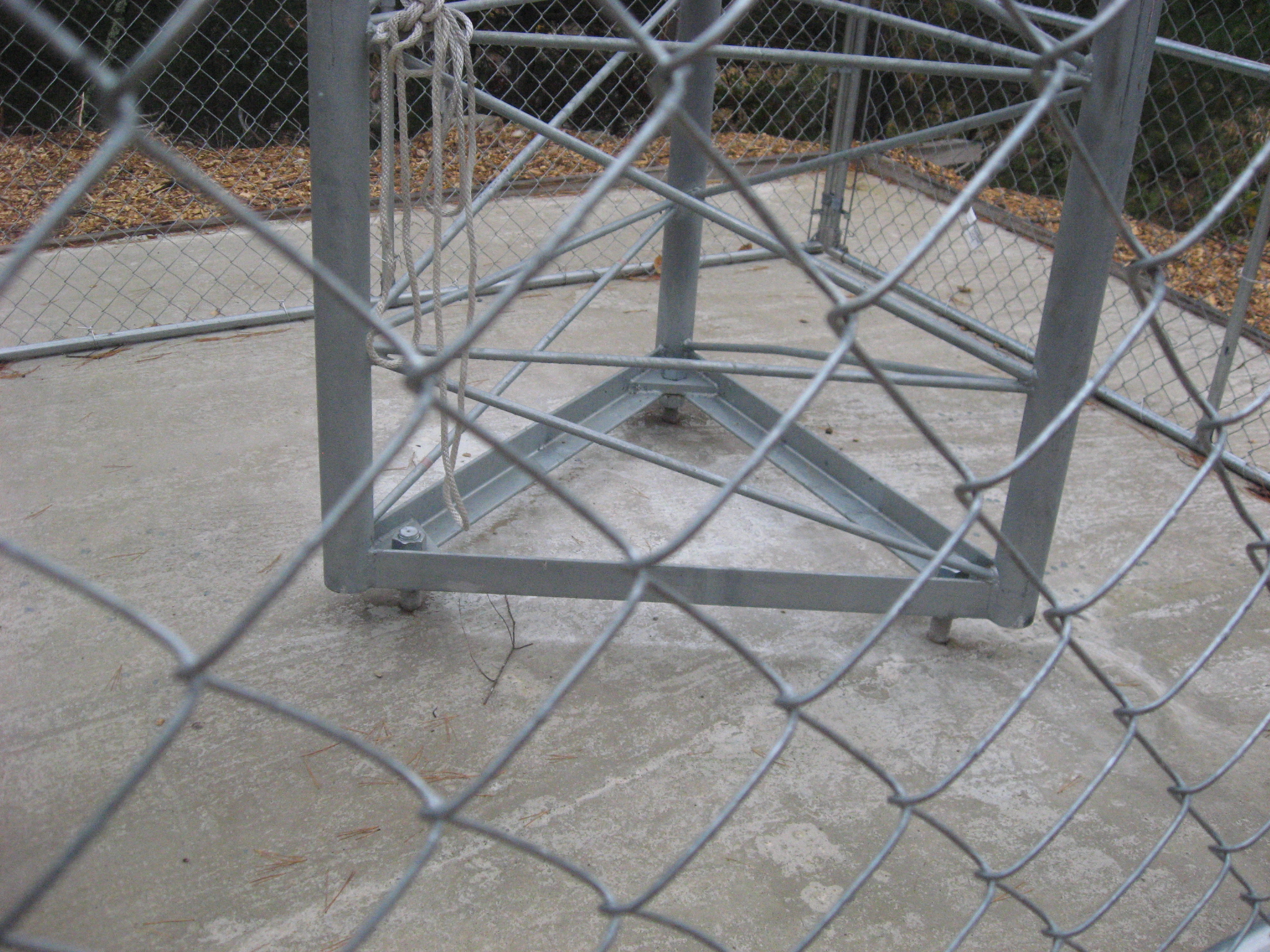

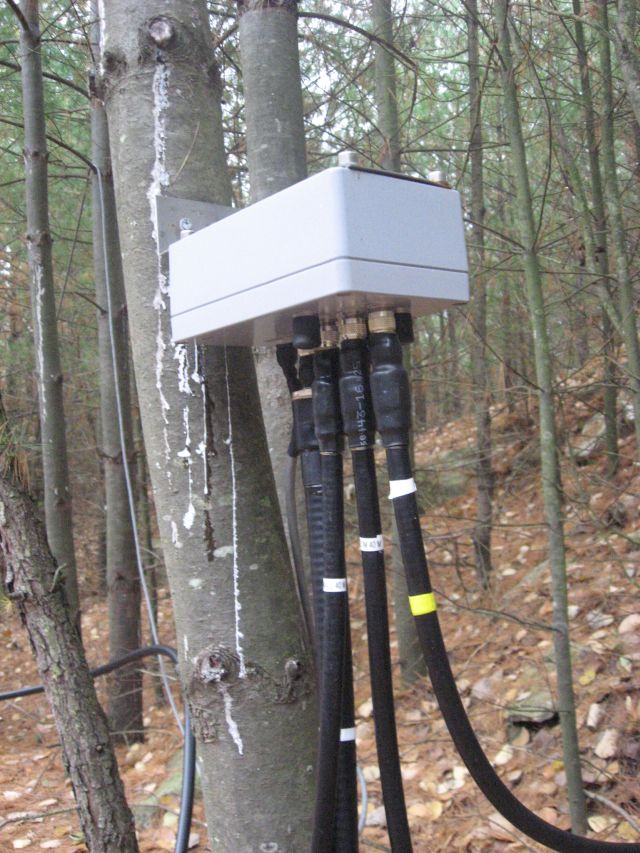

Tower 2 - Protected Base Section Tower # 2 - Qty 2 Monster SteppIR Beams Tower # 2 - Romote Coax Switch in the Woods

Tower 2 Antenna System Description:

a) Brazilian Free Standing Tower, 93'

b) K0XG Ring Rotators, 93'

c) Prop-pitch Rotator, 150' (Top)

d) 20 Meters, M2 20M5 Mono-Bander, 5 Elements, Qty 1 90

e) Monster SteppIR; 4 Elements (3 Elements 40 Meters, 4 Elements 14. 350 thru 28.0 Mhz), Qty 2 - 80' and 150'
